002 / About This System
Built for high-speed
Built for high-speed
precision winding

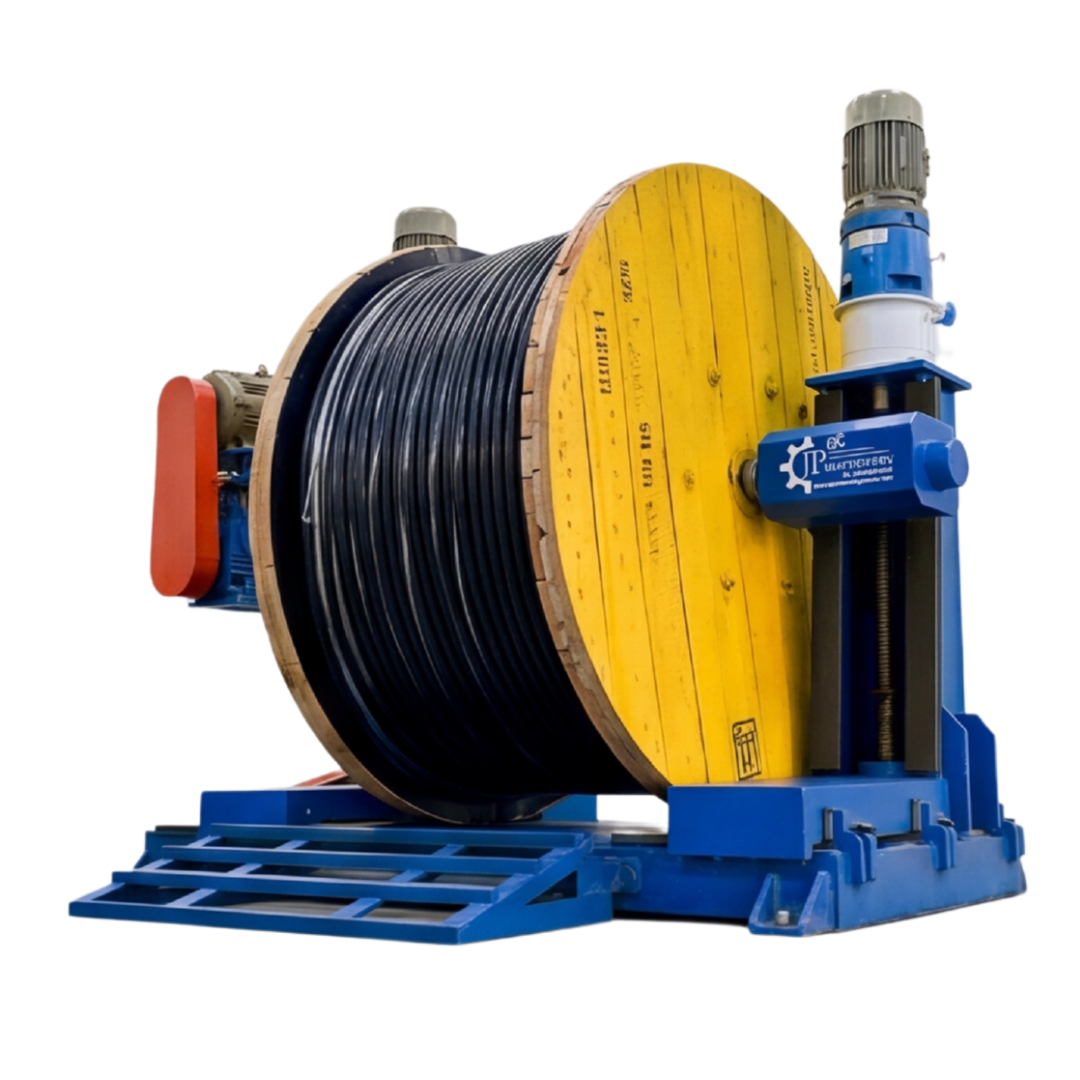

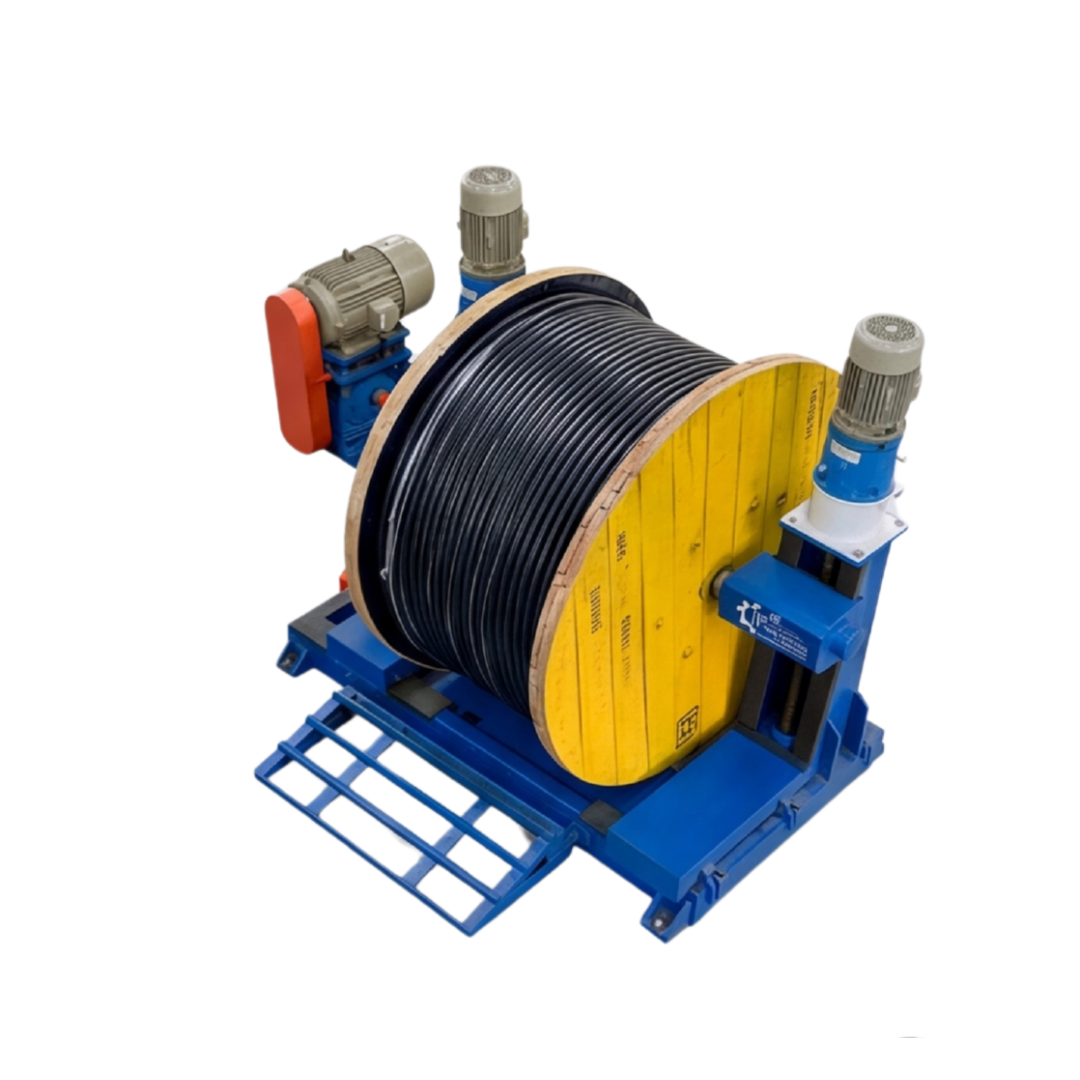

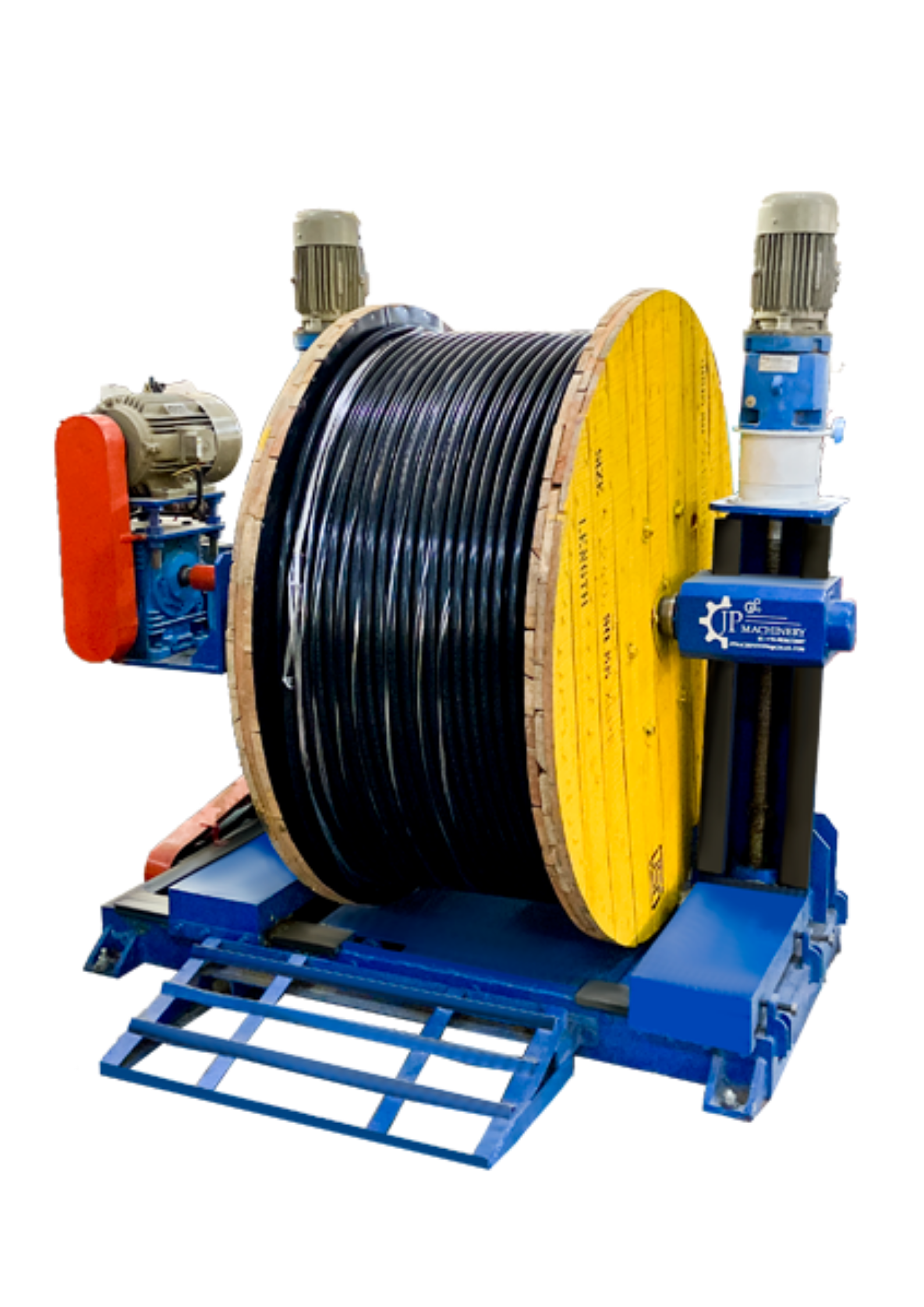

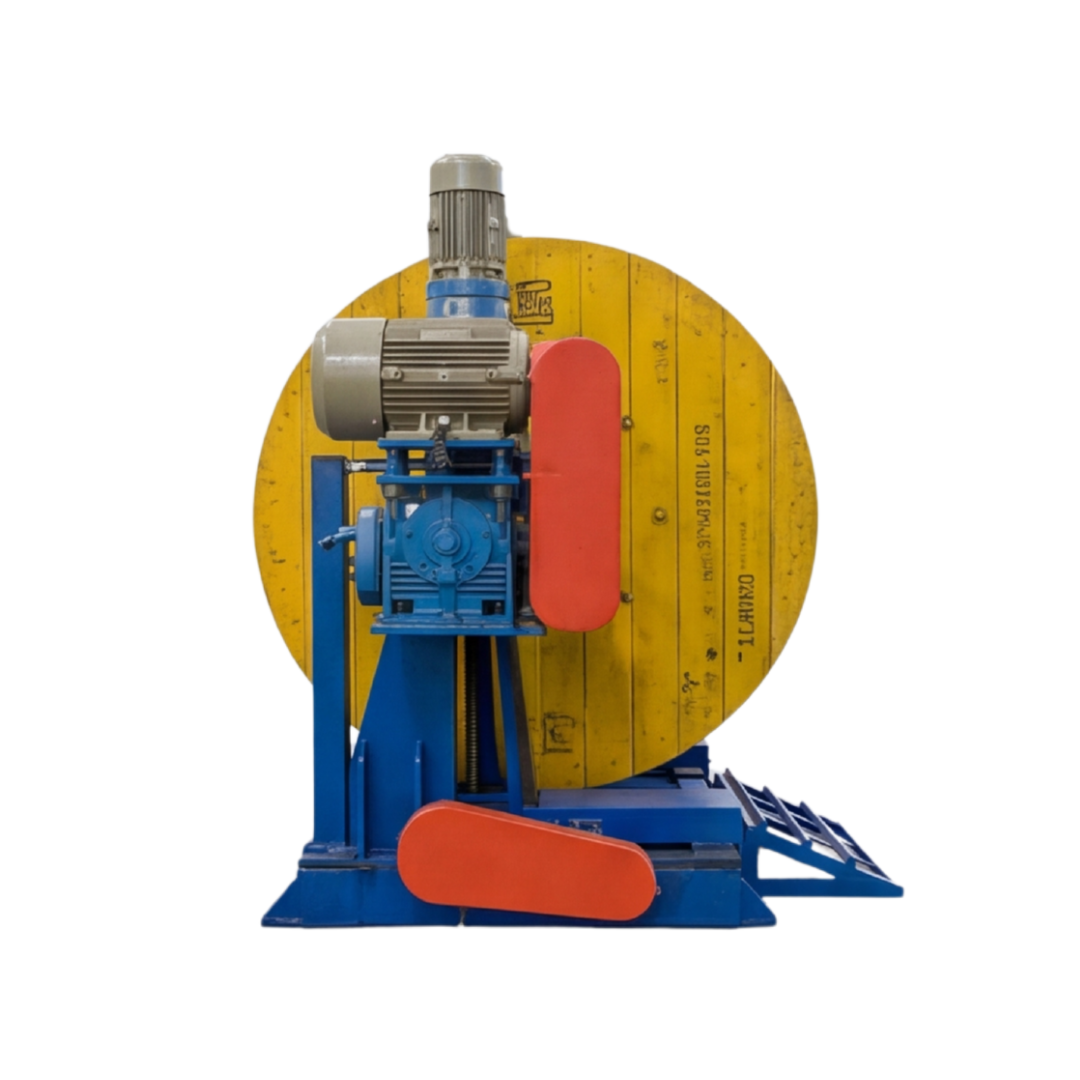

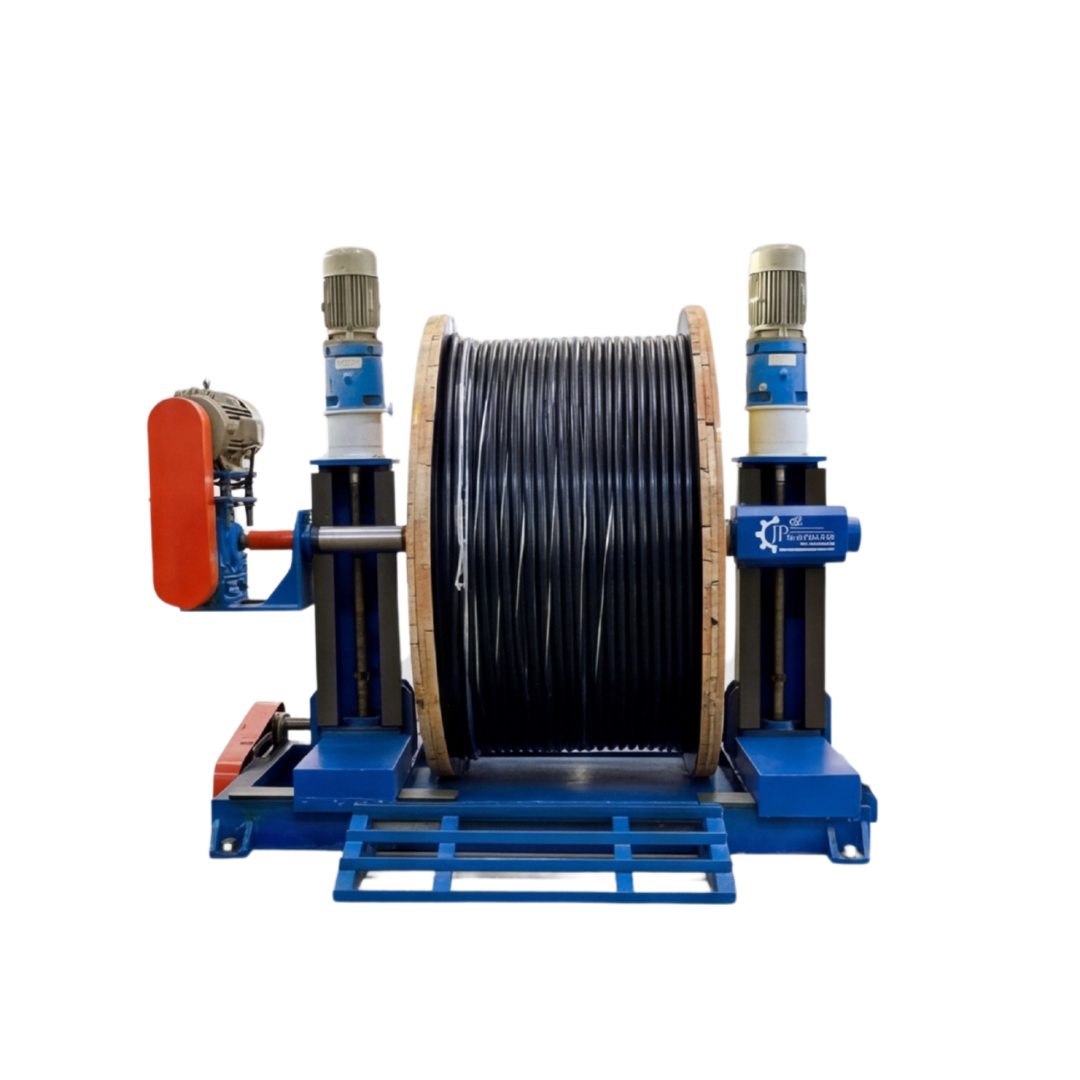

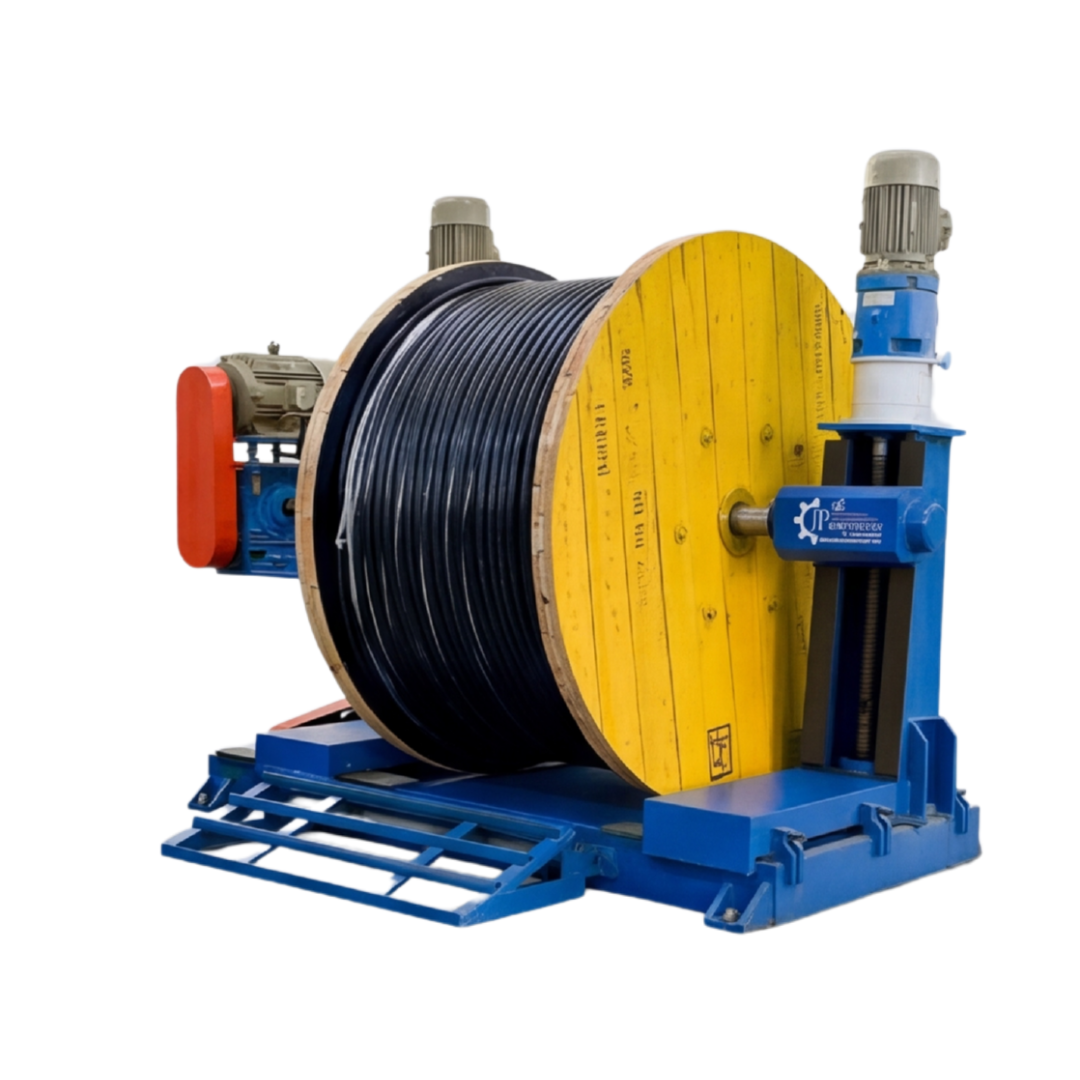

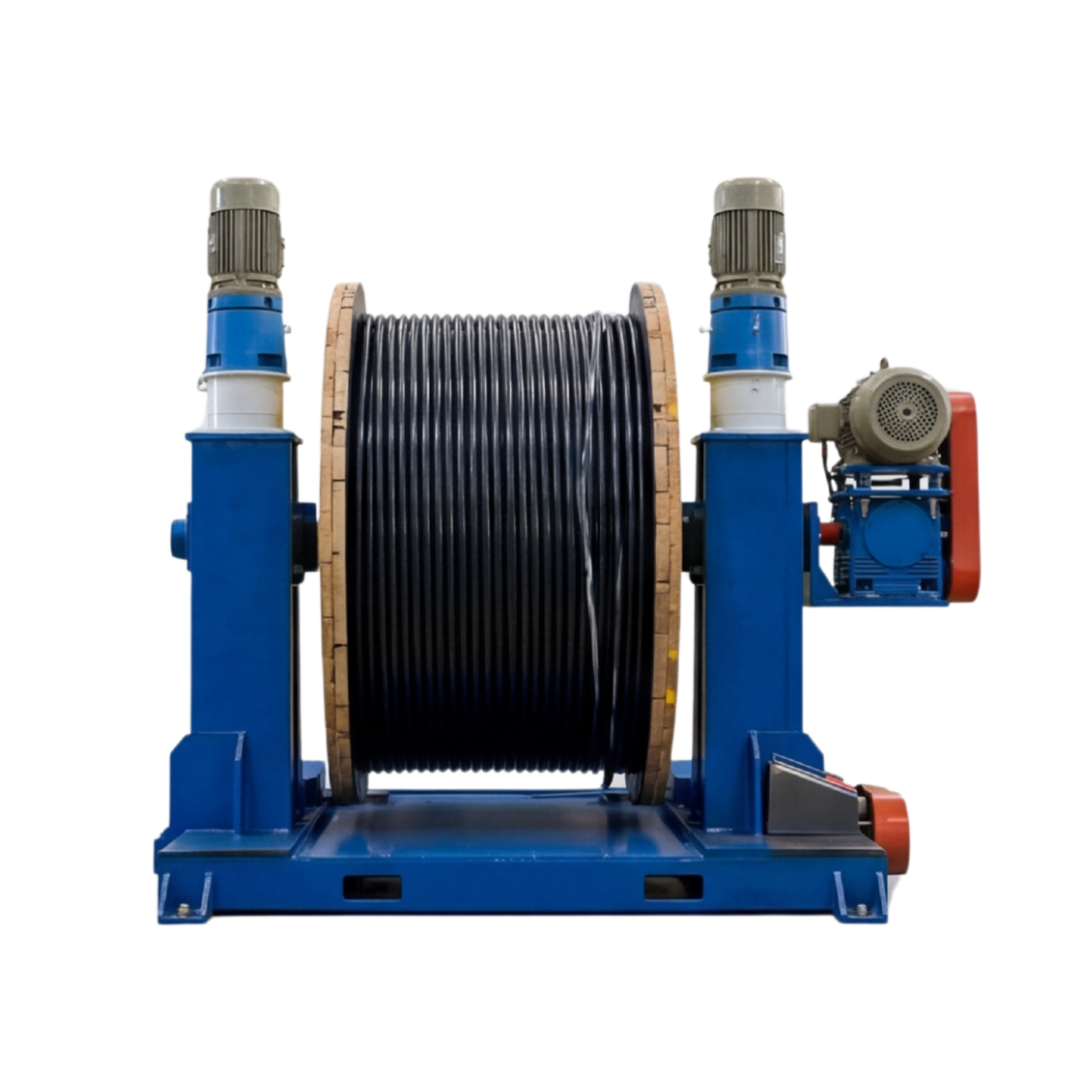

The JP-SX Series Pillar Type Take-Up is engineered for continuous, high-speed winding of wire and cable onto bobbins and drums across the full range of conductor sizes. The rigid pillar-mounted traverse arm ensures precise, layer-by-layer deposition with constant tension control — eliminating slippage, loose winding, and spool distortion at every diameter.
Available for bobbin outer diameters from 160mm to 1,250mm, the JP-SX accommodates fine enamelled conductors through to heavy power cable. Each unit ships with a servo-controlled dancer, PLC tension loop, and motorised traverse pitch adjustment for rapid changeovers between product runs.
Key Features
- Rigid pillar frame with dual-column traverse guide — eliminates lateral flex at high speed
- Servo-driven traverse with programmable pitch — supports level and cross-wound patterns
- Closed-loop tension control via dancer arm — ±0.1 N accuracy across full bobbin build-up
- Motorised bobbin lift and automatic changeover with zero-speed splicer option
- Siemens S7-1500 PLC with 15" HMI — stores up to 500 product recipes
- Adjustable flange pressure and taper tension profile for sensitive insulated conductors
