From dry PVC blend to finished compound — standard and Die Face Cutter models
The JP-CM Series processes dry PVC dry blend — resin, plasticizers, stabilisers, fillers, and pigments — into a fully homogeneous compound. A purpose-designed compounding screw with dispersive and distributive mixing elements ensures complete additive incorporation without overheating the PVC matrix.

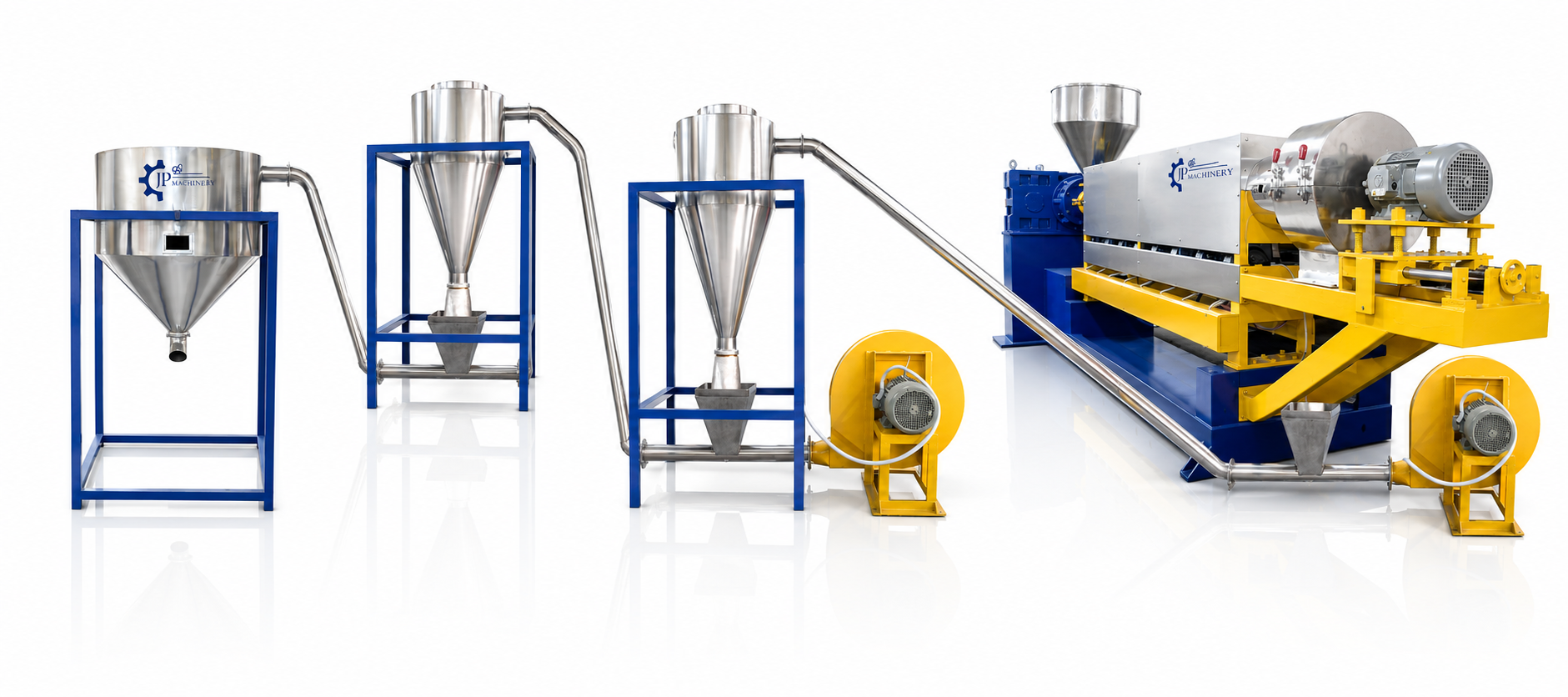

Two distinct models cover the full production chain. The standard JP-CM outputs molten PVC compound via a die head for direct connection to downstream calenders, pipe lines, or cable extruders. The JP-CM DFC (Die Face Cutter) adds a rotary-blade pelletizer that cuts compound at the die face and cools the pellets on an air conveyor — producing uniform cylindrical granules ready for bagging, storage, or re-extrusion. Both models share the same barrel and screw platform, available in five screw diameters from 100 mm to 150 mm.
Key Features
All five sizes are available in both the Standard (direct compound output) and DFC (Die Face Cutter pelletising) configurations. The DFC rows list additional cutter drive power and pellet size.
| Screw Diameter | 100 mm |
| L/D Ratio | 26:1 |
| Max Throughput (PVC) | 200 kg/hr |
| Screw Speed Range | 10–60 rpm |
| Drive Motor Power | 55 kW |
| Temperature Zones | 4 barrel + 1 die |
| Max Process Temperature | 185°C |
| Barrel Material | Nitrided steel |
| Overall Dimensions (L×W×H) | 2,500 × 900 × 1,400 mm |
| DFC — Cutter Drive Power | 1.5 kW |
| DFC — Pellet Size | Ø 3–5 mm × 3–6 mm L |
| Screw Diameter | 110 mm |
| L/D Ratio | 26:1 |
| Max Throughput (PVC) | 280 kg/hr |
| Screw Speed Range | 10–60 rpm |
| Drive Motor Power | 75 kW |
| Temperature Zones | 4 barrel + 1 die |
| Max Process Temperature | 185°C |
| Barrel Material | Nitrided steel |
| Overall Dimensions (L×W×H) | 2,700 × 950 × 1,450 mm |
| DFC — Cutter Drive Power | 2.2 kW |
| DFC — Pellet Size | Ø 3–5 mm × 3–6 mm L |
| Screw Diameter | 125 mm |
| L/D Ratio | 26:1 |
| Max Throughput (PVC) | 400 kg/hr |
| Screw Speed Range | 10–55 rpm |
| Drive Motor Power | 110 kW |
| Temperature Zones | 5 barrel + 1 die |
| Max Process Temperature | 185°C |
| Barrel Material | Nitrided steel |
| Overall Dimensions (L×W×H) | 3,100 × 1,000 × 1,550 mm |
| DFC — Cutter Drive Power | 3.0 kW |
| DFC — Pellet Size | Ø 3–5 mm × 3–6 mm L |
| Screw Diameter | 140 mm |
| L/D Ratio | 26:1 |
| Max Throughput (PVC) | 550 kg/hr |
| Screw Speed Range | 10–55 rpm |
| Drive Motor Power | 160 kW |
| Temperature Zones | 5 barrel + 1 die |
| Max Process Temperature | 185°C |
| Barrel Material | Nitrided steel |
| Overall Dimensions (L×W×H) | 3,500 × 1,050 × 1,600 mm |
| DFC — Cutter Drive Power | 4.0 kW |
| DFC — Pellet Size | Ø 3–5 mm × 3–6 mm L |
| Screw Diameter | 150 mm |
| L/D Ratio | 26:1 |
| Max Throughput (PVC) | 700 kg/hr |
| Screw Speed Range | 10–50 rpm |
| Drive Motor Power | 200 kW |
| Temperature Zones | 6 barrel + 1 die |
| Max Process Temperature | 185°C |
| Barrel Material | Nitrided steel |
| Overall Dimensions (L×W×H) | 3,800 × 1,100 × 1,650 mm |
| DFC — Cutter Drive Power | 5.5 kW |
| DFC — Pellet Size | Ø 3–5 mm × 3–6 mm L |
Flexible PVC compounds for wire and cable insulation — consistent additive distribution ensures uniform electrical and mechanical properties.
High-quality rigid PVC compound for window frames, door profiles, conduits, and building construction sections.
Plasticised PVC compounds for flooring tiles, garden hose, medical tubing, conveyor belts, and flexible sheeting.
Concentrated pigment and additive masterbatches for PVC — high-loading dispersion with precise let-down ratios.
UPVC compounds for pressure pipe, drainage pipe, and conduit systems to IS, BS, and DIN standards.
