Box Pasting
Machine

India's most-installed
box pasting solution

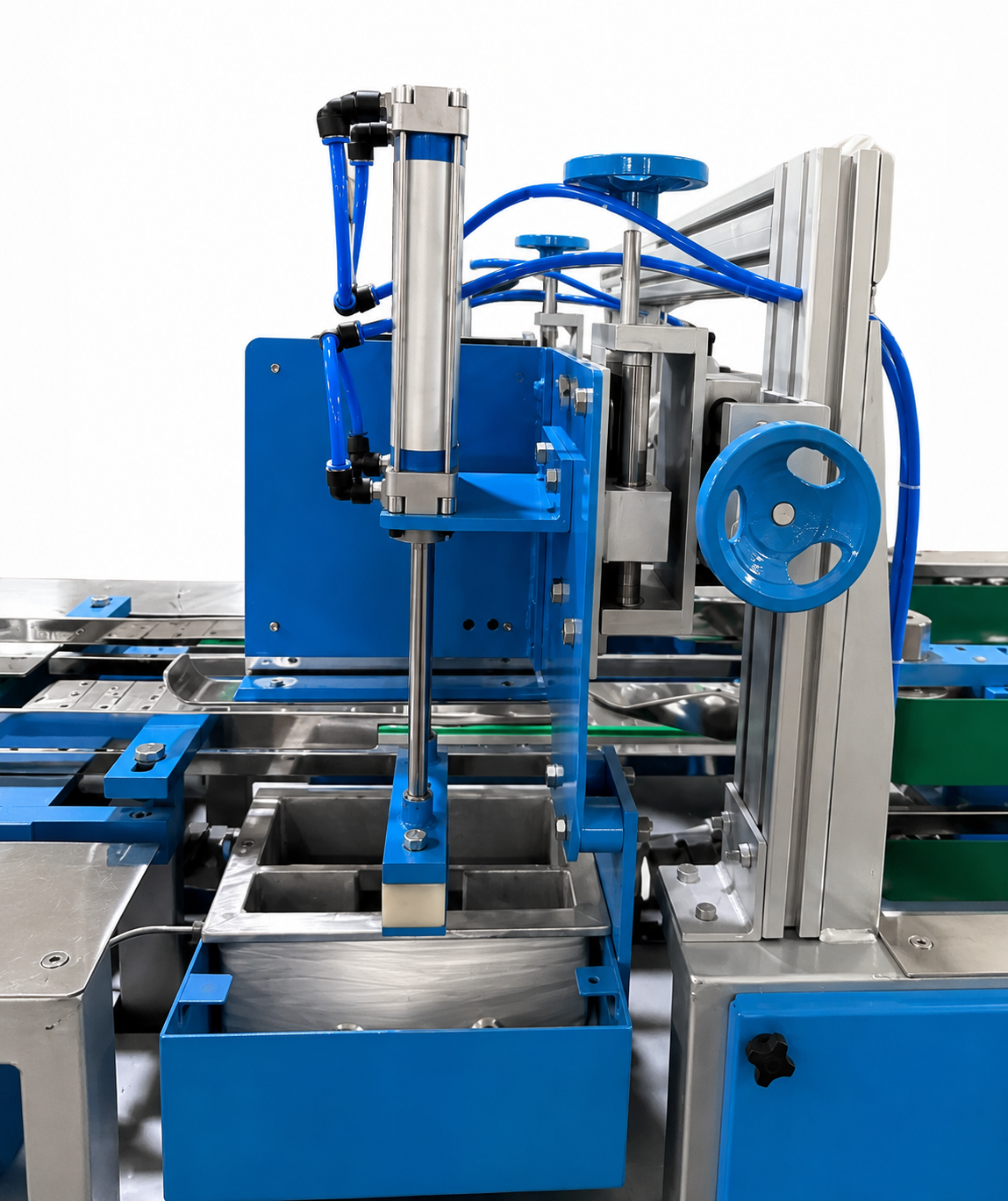

The JP-BPM is a conveyor-type box pasting machine designed specifically for sealing the side flaps of house wire packaging boxes using hot melt adhesive. Hot melt adhesive in granule form is loaded into an open-top tank, where a horizontal applicator stick — driven by two pneumatic cylinders, one on each side — dips down into the molten adhesive and returns upward to apply a precise adhesive bead onto each box flap as it passes along the conveyor belt.

The result is a clean, consistent seal at production rates up to 1,200 boxes per hour — with no manual application, no mess, and minimal downtime. Powered by a compact 0.5 HP motor and gearbox, the JP-BPM is energy-efficient and easy to maintain. The open tank design allows quick adhesive top-up without stopping the machine, making it ideal for high-volume packaging lines.

Key Features

• Open-top hot melt adhesive tank — easy granule loading without stopping the machine
• Dual pneumatic cylinder applicator — horizontal stick dips into the tank and rises to apply adhesive, one cylinder on each side for balanced, consistent transfer
• Conveyor-type continuous operation — steady feeding for throughputs up to 1,200 boxes/hr
• 0.5 HP motor with gearbox — compact, energy-efficient, and low-maintenance drive system
• Adjustable conveyor speed — set the rate to match your packaging line output
• Simple mechanical design — easy to operate, clean, and service on the shop floor
