Automatic dust-free material conveying for extrusion and compounding systems

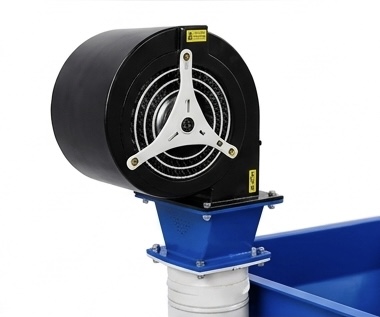

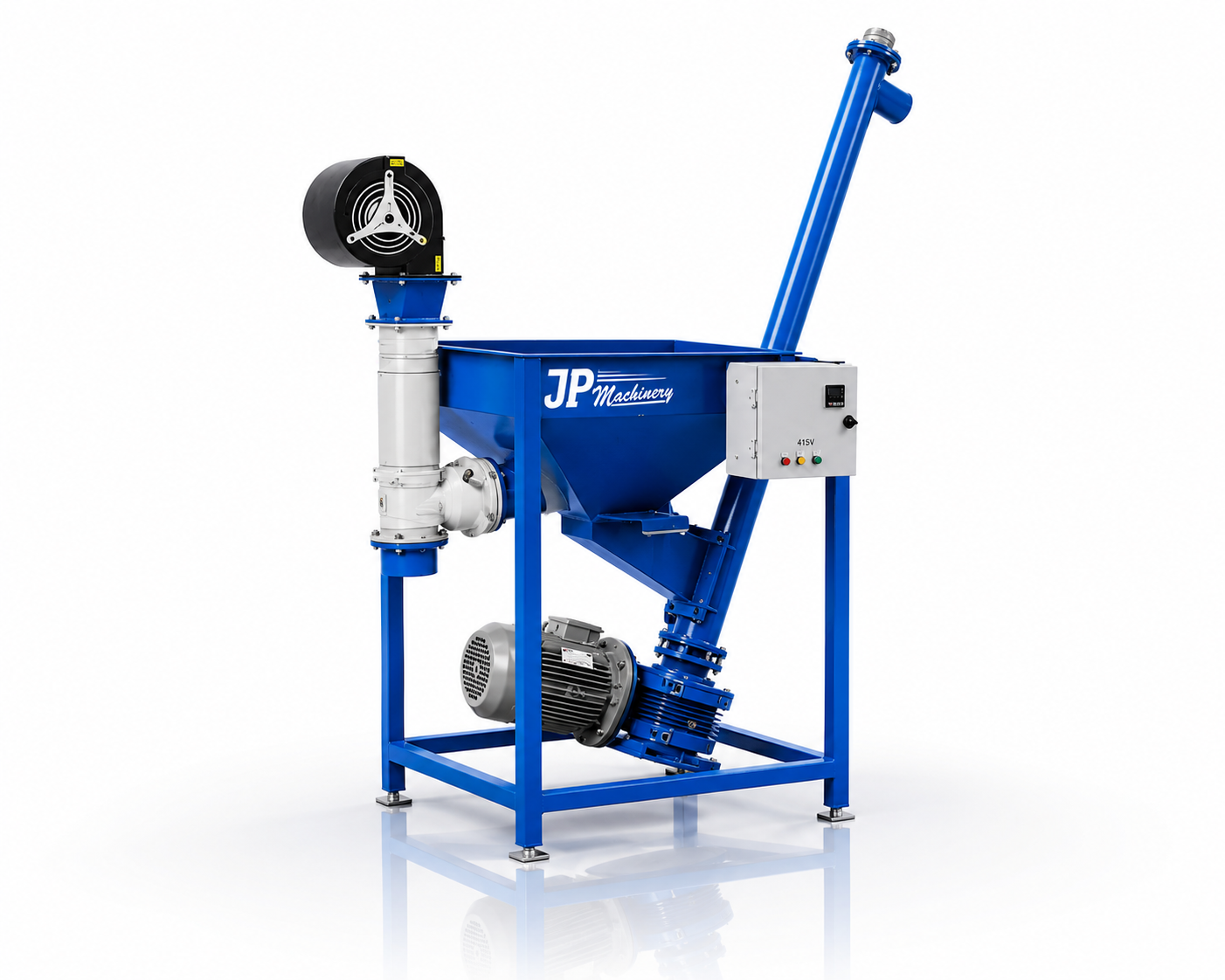

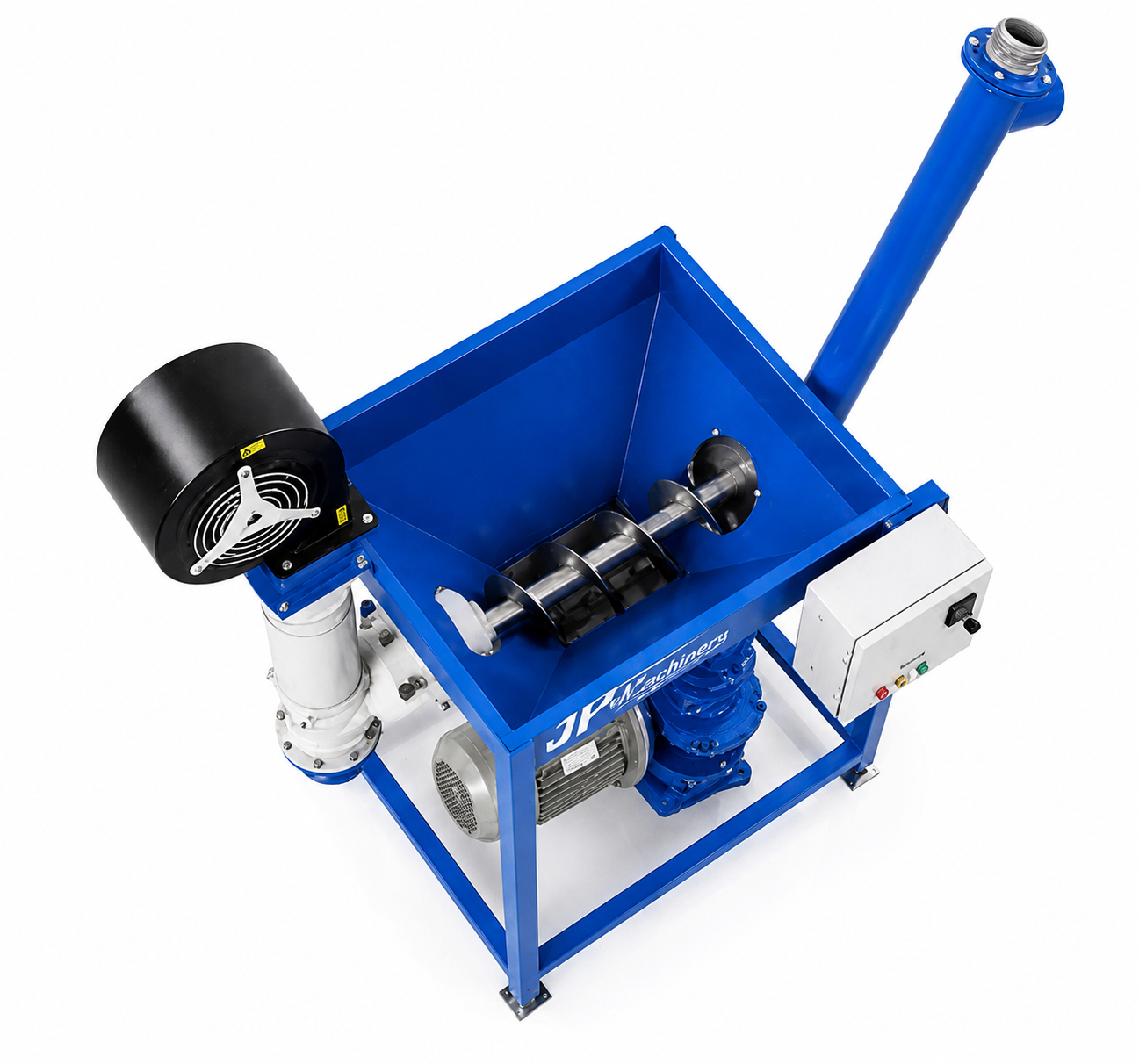

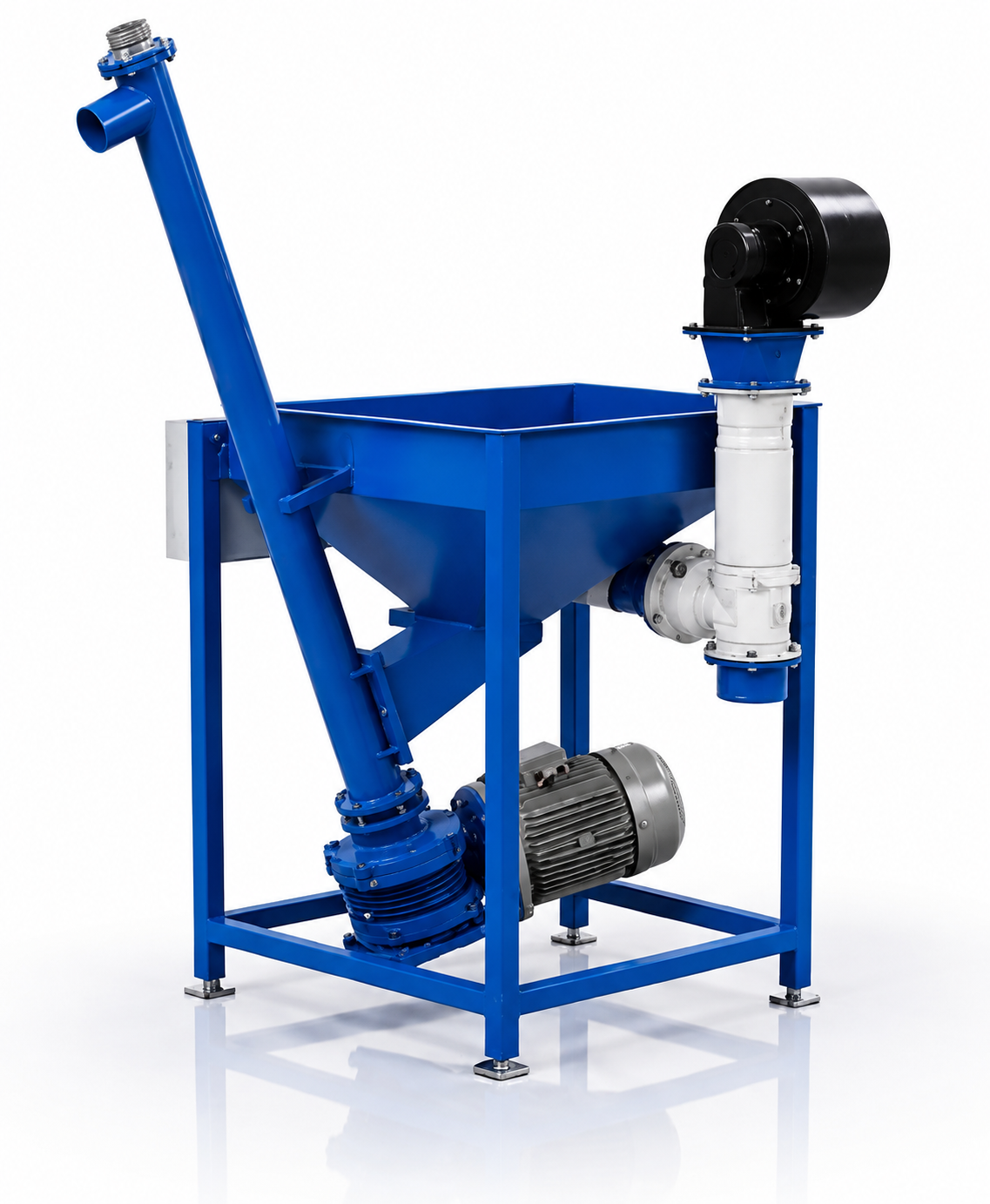

The JP-HL Series Hopper Loader is an automatic vacuum-conveying unit designed to feed granule or powder materials from ground-level storage bags or silos directly into the extruder or compounding machine hopper. The suction system draws material through a sealed conveying tube — eliminating manual bag lifting and greatly reducing airborne dust in the production environment.
Three models cover a wide range of production throughputs and material bulk densities. The JP-HL 200 is a compact unit suited to lower-throughput lines and space-restricted installations. The HL 500 serves mid-range extrusion lines with a larger conveying volume and adjustable suction timer. The JP-HL 1000 is the high-capacity model with dual-filter self-cleaning discharge, variable timer control, and stainless-steel conveying tube — suitable for demanding continuous-run production where material flow consistency directly affects extruder output stability.
Key Features
Three models covering low to high-capacity conveying requirements. Compatible with PVC granules, PE pellets, and fine polymer powders.
| Loading Capacity | 200 kg/hr |
| Hopper Volume | 8 litres |
| Motor Power | 1 HP |
| Conveying Distance (max) | 4 m vertical / 8 m horizontal |
| Filter Type | Single polyester bag filter |
| Material Compatibility | PVC granules, PE pellets, PP pellets |
| Suction Timer | Manual rotary timer |
| Machine Weight | ~8 kg |
| Loading Capacity | 500 kg/hr |
| Hopper Volume | 20 litres |
| Motor Power | 2 HP |
| Conveying Distance (max) | 6 m vertical / 12 m horizontal |
| Filter Type | Dual polyester bag filter |
| Material Compatibility | PVC, PE, PP granules and powders |
| Suction Timer | Digital adjustable timer |
| Level Sensor | Capacitive hopper level sensor |
| Machine Weight | ~18 kg |
| Loading Capacity | 1000 kg/hr |
| Hopper Volume | 50 litres |
| Motor Power | 5 HP |
| Conveying Distance (max) | 10 m vertical / 20 m horizontal |
| Filter Type | Pulse-clean self-cleaning filter |
| Material Compatibility | PVC granules, PE/PP pellets, fine polymer powders |
| Conveying Tube Material | Stainless steel (food-grade option) |
| Suction Timer | PLC-controlled programmable cycle |
| Level Sensor | Dual-level capacitive sensors (high/low) |
| Machine Weight | ~45 kg |
Automatic PVC and PE granule conveying from floor-level storage bags directly into extruder hoppers — eliminates manual lifting and maintains continuous material supply for uninterrupted production.
Continuous feeding of PVC dry-blend powder and stabiliser additives into compounding extruder hoppers — sealed conveying prevents cross-contamination and airborne compound dust.
Automatic pellet feeding for blow moulding machines and injection moulding presses — programmable fill cycles synchronised to machine cycle time for optimal material replenishment.
Precision feeding of masterbatch pellets and colour concentrate granules — accurate fill volume control ensures consistent let-down ratios without manual measuring.
